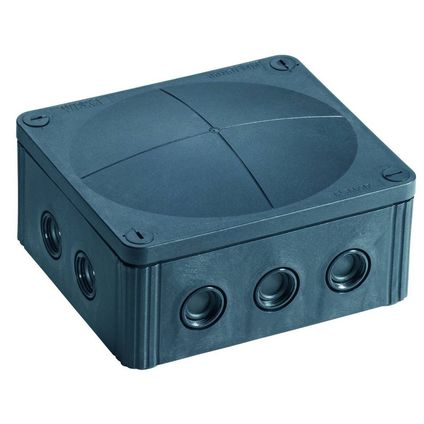

Part Code: 10101463

• 160 x 140 x 81mm (LxWxH)
• Material: Polypropylene
• Material sealing gasket: TPE
• Temp. range min: -30°C
• Temp. range max: 100°C
• Temperatures during install: -5°C - 60°C
• Protection class: IP66/67
• Glow wire test: 750°C
• Voltage: 690V

By using just one single size-dependent assembly tool, the four elements cap nut sealing insert optional. EMC insert and fitting can be combined custom-fit to a SPRINT cable gland with the easy 4-in-1 principle - material-independent in polyamide brass and stainless steel. SPRINT offers from bend protection over external strain-relief, explosion-proof to the breathing alternative with VentGLAND® professional solutions, for individual requirements. All cable glands whether polyamide, brass or stainless steel have identical clamping ranges and comply with highest demands by IP68 and IP69. Our comprehensive range of accessories can be used either with metal or plastic cable glands. Items available include multiple reduction and special sealing inserts. PG metric and NPT threads are on offer in different lengths. The cable glands are applicable up to -60˚C. Different sizes of EMC inserts can be fitted in the SPRINT system's metal cable glands to provide electromagnetic compatible installations. With the two types of earthing cone and contact spring insert the need to hold separate stocks of specialised EMC cable glands is now a thing of the past.
