Domus

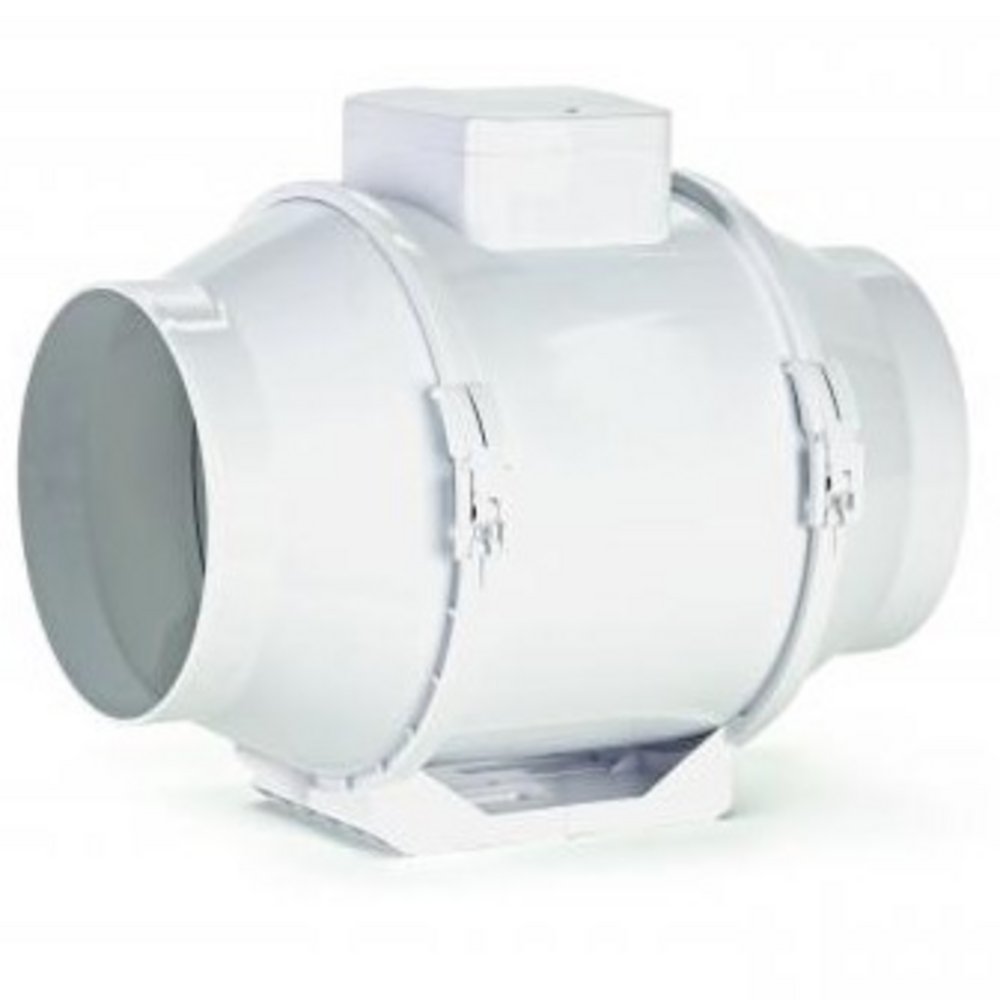

VIT150TB Fan & Timer 150mm

Part Code: VIT150TB

Stock Availability
Please contact your local branch for details
Product Details
Part Code: VIT150TB

150mm 230V High Performance Fan and Timer Kitchen and utility room Very high air flow performance Concealed fan for discreet operation Ideal for longer duct runs. Maximum Extract Volume (m³/hour): High 680/Low 595 Maximum Extract Volume (l/s): High 189/Low 165 Maximum Pressure (Pa): High 342/Low 315 Supply Frequency (Hz): 50 Maximum Power (W): High 124/Low 92 Maximum Sound Level dB(A) @ 3m: High 46/Low 39 Weight (kg) (Fan only) : 3 IP Rating : X4 Maximum Temp (˚C): 40 Warranty : 2Yrs

Specifications
Colour White
Depth 250mm
EAN 5053062048966
Extraction Rate 520m³/h
Height 295mm
Supply Voltage 230V
Width 220mm
