Part Code: 009-001-009-07

• Category 6 performance
• Unique colour coded saddles allow for quick and easy termination
• Industry standard IDCs
• Top quality high performance sockets
• Individually QA tested
• Manufactured in the UK
• Width 483mm (19”
• Depth 30mm
• Height 1u (44mm)
• Fixing Centres 467mm

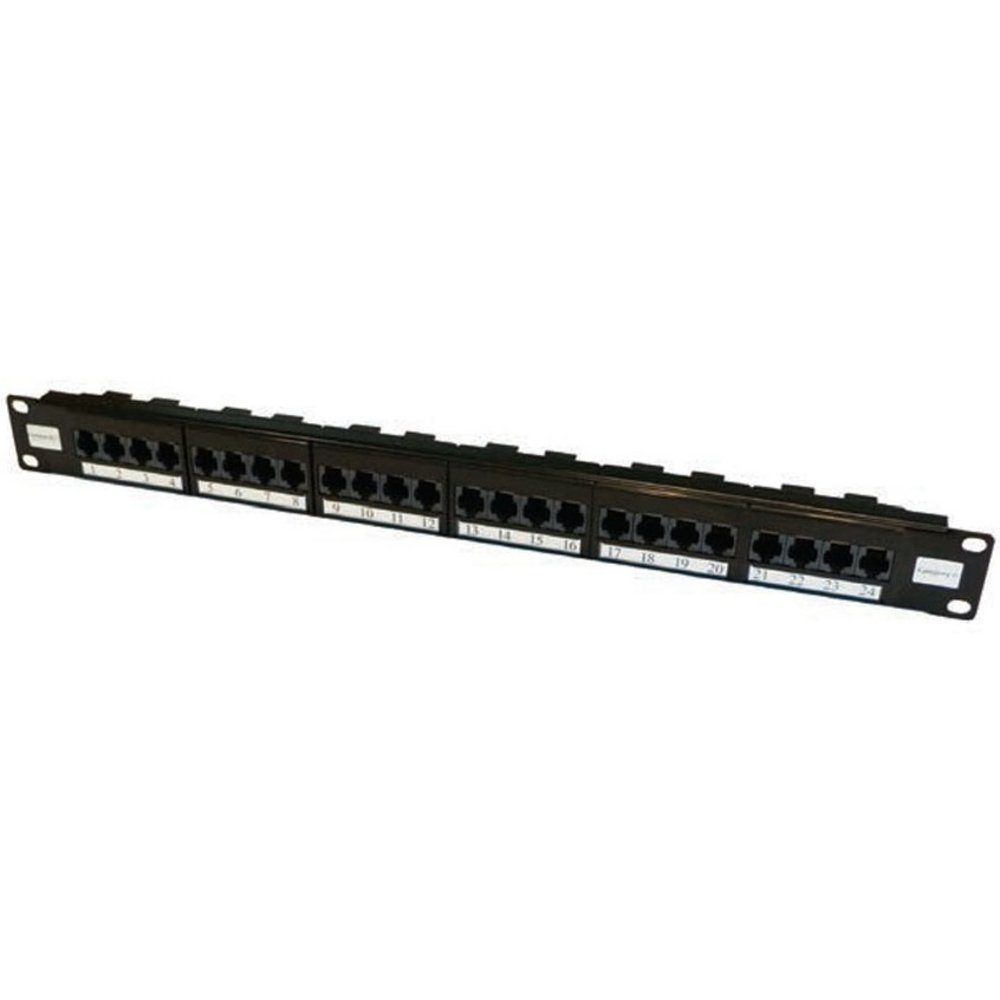

Cat6 performance Unique colour-coded saddles allow for quick and easy termination Industry standard IDCs Top quality high performance sockets Individually QA tested Manufactured in the UK Connectix Cat6 High Density Elite Patch Panels provide the performance needed for present and next generation data communications networks and applications including Gigabit Ethernet. The high density format is ideal where cabinet space is at a premium. The front of the panel features easy-to-use slide-in labels. The rear utilises colour-coded cable saddles and hook and loop retainers. All Connectix Cat6 High Density Panels are fully compliant with the ANSI/TIA Cat6 Standard. When used in conjunction with Connectix Cat6 Modules and UTP Cable the user will get a link performance exceeding Cat6 requirements. Width 483mm (19") Depth 30mm Height 1u (44mm) Fixing Centres 467mm Material Mild steel sheet CR4 to BSEN10130-1999 DC01 Plastic inserts ABS thermoplastic resin with grade UL 94 V-0 at 1.5mm flame retardation. Finish Black powder coat to BS6496 Socket Labels 9mm numbered card with acetate cover IDC Colour Code IDC colour code to T568B. Cable Guide Individual cable saddles with cable tie position for left or right cable entry Sockets High performance unshielded vertical jacks. IDC Blocks 4 Way industry standard IDC blocks PCB Groups of 4 identical circuits on 1.6mm double-sided PTH board. Conforms to ANSI/TIA-568-C Cat6 Specification.
