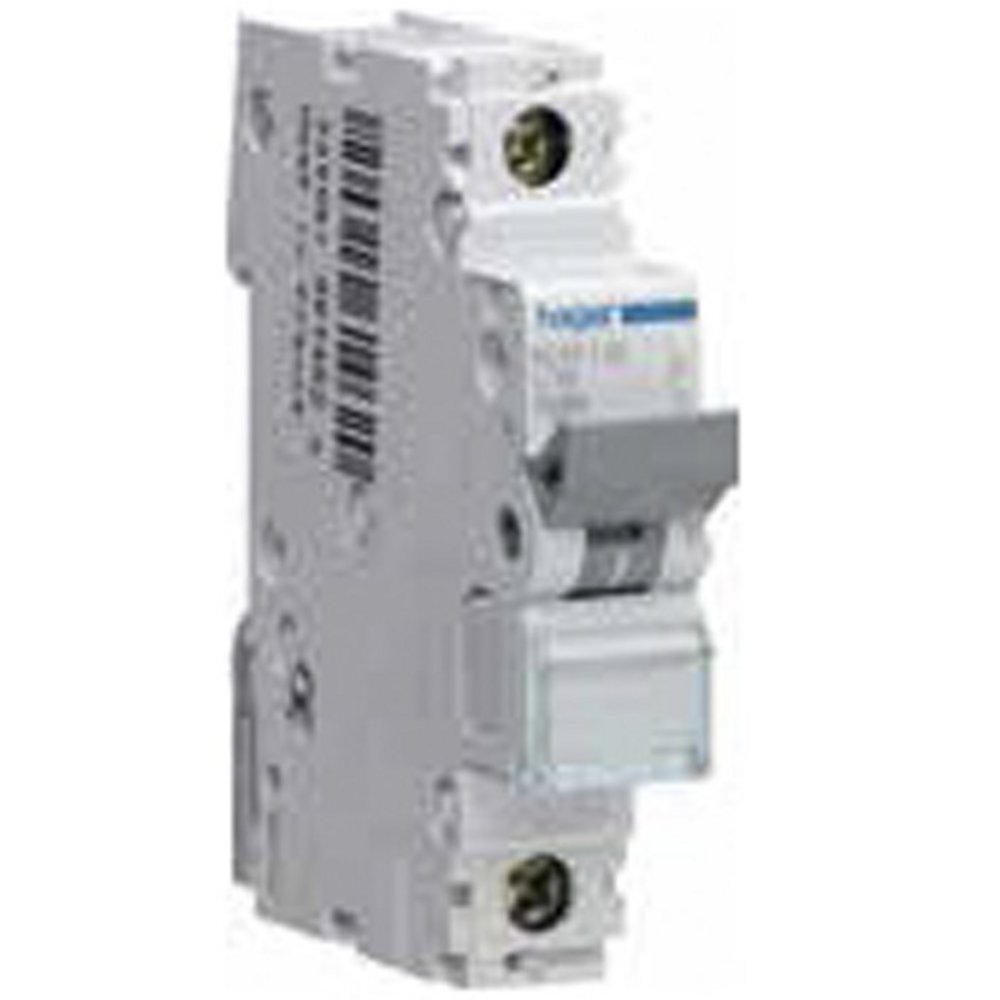

50A SP 10kA Type B MCB
50A SP 10kA Type B MCB
Part Code:
NBN150A
Stock Availability
Please contact your local store for details
FREE delivery over £50 ex. VAT
Product Details
Part Code:
NBN150A
- Protection of circuits against short circuits
- Protection of circuits against overload current
- The state of isolation is clearly indicated by the "OFF" mechanical position on the toggle with the green colour
Single Pole MCB 10kA Type B (6A to 63A) 10kA Type B Complies with BS EN 60898 (10kA) BS EN 60947-2 (15kA) Voltage rating: 230 - 400V Connection capacity: Rigid conductor 35mm² Flexible conductor 25mm² Width : 1 module (17.5mm)
Specifications
| Breaking Capacity | 15kA |
| Current Rating | 50A |
| Curve Type | Type B |
| EAN | 3250614618093 |
| Manufacturer Part Code | NBN150A |
| Mounting Type | DIN Rail |
| Number of Poles | 1 Pole |
| Product Range | NBN Series |
| Rated Voltage | 230V, 400V |
| UNSPSC Code | 39121603 |
