Doncaster Cables

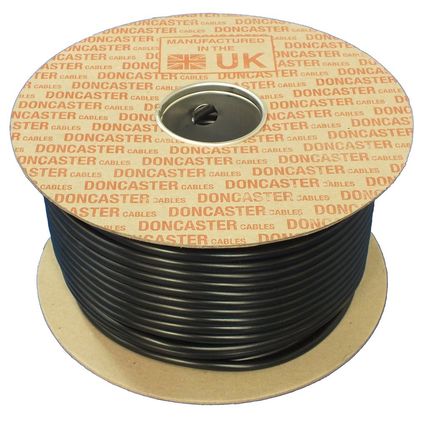

4.0mm² 4 Core Thermosetting Rubber Insulated & Sheathed Flexible Black (Per 1 Mtr)

Doncaster Cables

4.0mm² 4 Core Thermosetting Rubber Insulated & Sheathed Flexible Black (Per 1 Mtr)

Part Code: HO7RNF4.04C

Stock Availability
FREE delivery over £50 ex. VAT
Product Details
Part Code: HO7RNF4.04C
  • Annealed flexible copper conductor
  • Thermosetting rubber insulated
  • Thermosetting rubber sheathed
  • Operating temperature: -30°C to 60°C
  • Min bending radius: 6 x Ø

These cables are designed to provide high flexibility and have the capacity to withstand harsh weather conditions, oil and greases, mechanical and thermal stress - therefore these cables are well suited for use in harsh industrial conditions.

Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment and also port and dam areas. Due to the cables suitability for submersion under water it is also used for drainage and water treatment as well as electric motors and pumps in underwater conditions.

Downloads
Specifications
Cable Length 1m
Cable Type H07RN-F
Cross Sectional Area 4mm²
EAN 5021145031532
Harmonisation Code HO7RN-F
Manufacturer Part Code HO7RNF4.04C
Number of Cores 4 Core
Outer Diameter 17.9mm
Sheath Colour Black
Sheath Material Rubber
