Megger

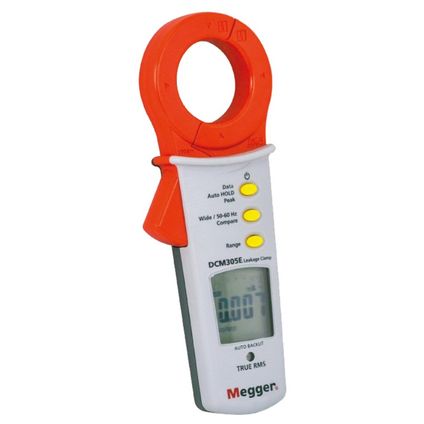

Earth Leakage Clamp Meter

Part Code: DCM305E

Stock Availability
Product Details
Part Code: DCM305E
  • 0.001mA resolution
  • Up to 100A range for standard AC current measurements
  • TRMS reading
  • Low pass filter to aid stability of readings
  • Auto, data and peak hold
  • 40mm jaw
  • Analogue bar graph display for trending

The DCM305E is perfect for identifying and measuring the earth leakage current in a circuit where the RCD keeps tripping out unexpectedly. The measured result will quickly identify whether the earth leakage current present is excessive, causing the RCD to trip, or if the RCD itself is over sensitive or faulty.

Specially designed to check earth leakage currents, the DCM305E is an efficient and highly versatile instrument. It has six ranges 6mA, 60mA, 600mA, 6A, 60A, 100A with a minimum resolution of 0.001mA on the 6mA range. Its upper range also enables TRMS AC current measurements up to 100A.

Specifications
Brand Megger
Current Measure AC Max. 100A
EClass Code 27-20-03
Maximum Jaw Opening 43mm
UNSPSC Code 41111716
