Invertek

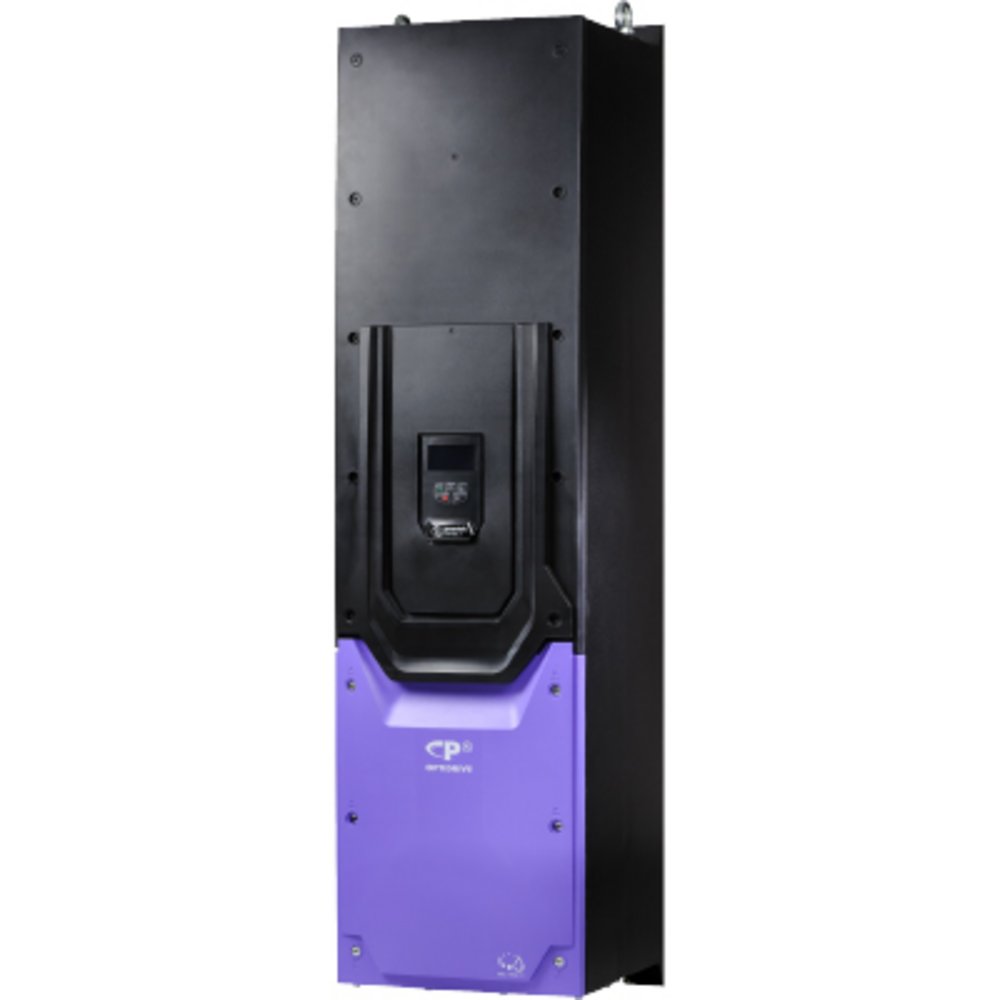

110kW (175HP) AC Variable Speed Drive (VFD) with EMC Filter, 202A, 480V, IP55, Optidrive P2 Series

Invertek

110kW (175HP) AC Variable Speed Drive (VFD) with EMC Filter, 202A, 480V, IP55, Optidrive P2 Series

Part Code: ODP-2-74110-3KF4N

Stock Availability
Please contact your local store for details
FREE delivery over £50 ex. VAT
Product Details
Part Code: ODP-2-74110-3KF4N
  • Compact, robust enclosures for panel/cabinet mounting
  • Sizes 4-8 cover power ranges up to 250kW/400HP
  • Operates from -10°C to 50°C

The Optidrive P2 offers the perfect combination of high performance together with ease of use to allow even the most demanding applications to be tackled easily.

Designed for fast installation and commissioning, Optidrive P2 provides the most cost effective solution for industry.

All Optidrive P2 units provide 150% overload for 60 seconds as standard, ensuring each drive is suitable for Heavy Duty applications, whilst the IP55 enclosed versions ensure the drive is tough enough to survive in industrial environments.

Extensive I/O and communications interface capabilities ensure the drive can be integrated quickly and efficiently into a wide variety of control systems with the minimum commissioning time, ensuring rapid start up. Invertek’s simple parameter structure, and carefully selected factory parameter settings ensure that commissioning time is kept to a minimum.

Specifications
Current Rating 202A
Depth 560mm
Height 1420mm
Input Voltage Range 380V - 480V
Manufacturer Part Code ODP-2-74110-3KF4N
Number of Phases Three Phase
Power Rating 110kW
Product Range Optidrive P2 Series
Width 540mm
