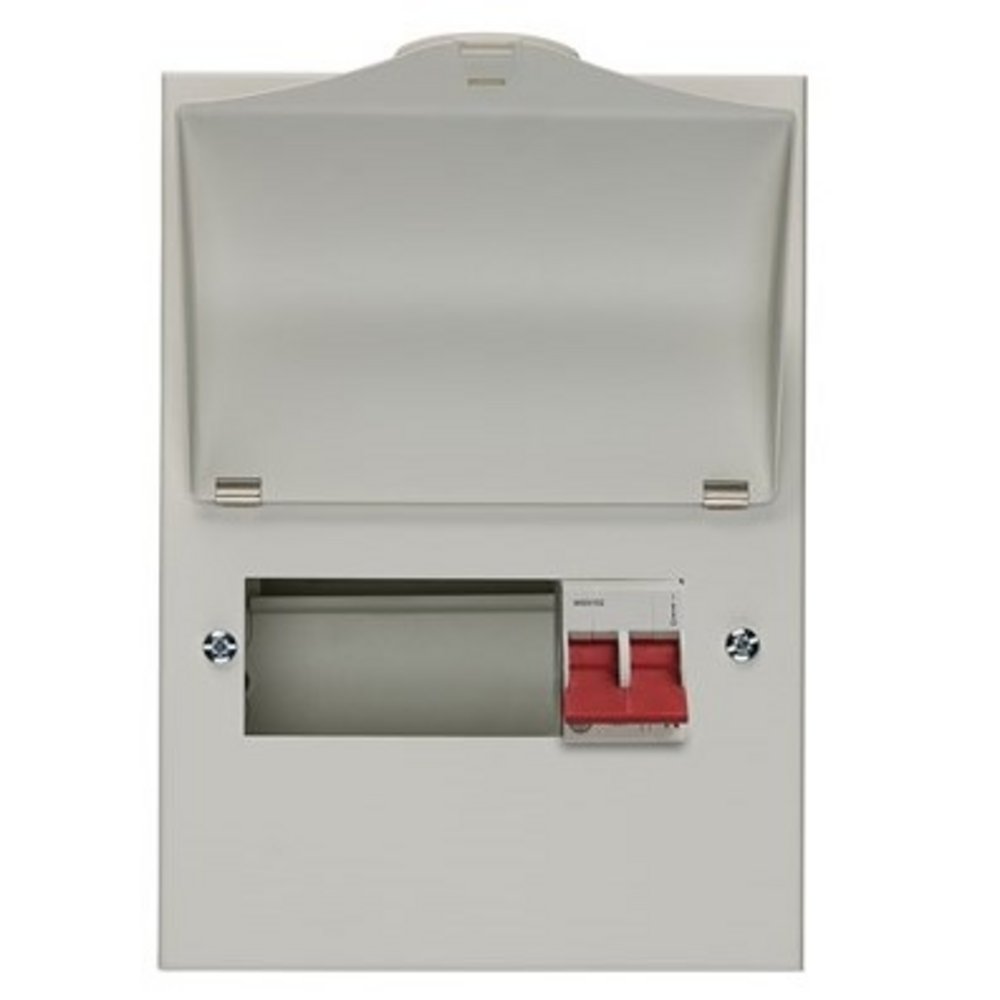

100A Consumer Unit Main Switch, 7 Module, 5 Way, White, IP2XC
100A Consumer Unit Main Switch, 7 Module, 5 Way, White, IP2XC
Part Code:
NM506L
Call for price
Stock Availability
Please contact your local store for details
FREE delivery over £50 ex. VAT
Product Details
Part Code:
NM506L
- 5 way main switch only consumer unit
- Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly
- Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs
- Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1
- Constructed from a full metal enclosure with curved visor and temporary locking facility
Downloads
Specifications
| Current Rating | 100A |
| Depth | 121mm |
| Height | 261mm |
| Manufacturer Part Code | NM506L |
| Number of Ways | 5 Way |
| Populated / Unpopulated | Part-Populated |
| Width | 188mm |
